Pre-Cast Hardscapes > Locbloc Installation Instruction

back to Retaining Wall Blocks - Locbloc Home Page | Extreme Application Gallery (Soil Nail / Locbloc Combination)

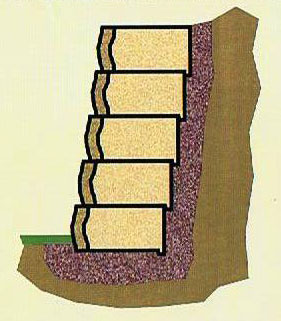

A solid foundating ensures a well built and long lasting wall. Excavate a trench 16" (400mm) wide x 4" (100mm) deep. Fill with 1/2" stone gravel and compact. Place first course, with retaining lip downward on the prepared foundation. Use spirit level and string line to ensure level and straightness. Backfill each course to top of Locbloc. To offset vertical joint lines, position second course with Locbloc halfway on top of the lower units. The built in lip on the underside of the block establishes a required set-back.

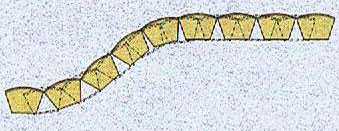

NOTE: the wedge shape of the Locbloc allows straight and internally or externally curved walls to be built.



Block shape allows forward and reverse curves to be achieved with uniform joint line between face edges of each block.
